M8s Plus DVB T2/T DVB S2X/S2/S Terrestrial 1GB 8GB Android 7.1 TV Box Combo Amlogic S905D Quad Core 64-bit 1080p 4K Set Top Box

$42.90 30 % $61.29
0 sold
Qty
Product description
Product description
A1

-m8s over dvb box have two options:

A: M8S Plus DVB-T2+Android Combo Box

B: M8S Plus DVB-S2+Android Combo Box

for t2:

vontar m8s over dvb boxintegrates the Android 7.1 TV Box andDVB T2 / T.Terrestrial Receiver , which can enhance the function of you TV or LCD monitor and change your traditional TV or LCD monitor into a intelligent platform which just like a smart phone or a Tablet PC by connecting the Internet (via WIFI or RJ45).

-Android TV Box + DVB T2 / T.

-DVB-T2 system standard: ETSIEN 302 755

-Amlogic S905D Quad-Croe 64-bit Cortex-A53

-Android 7.1 OS

1gb RAM, ROM 8gb

-Support H.265 4K @30fps 10btis, VP9  Profile 2, H.264 4K @30fps

a support 2.4ghz WIFI LAN Ethernet

for s2:

-Android TV Box + DVB-S/S2/S2X

-Amlogic S905D Quad-Croe 64-bit Cortex-A53

-Android 7.1 OS

1gb RAM, ROM 8gb

-Support H.265 4K  30fps 10btis, VP9  Profile 2, H.264 4K  30fps

a support 2.4ghz WIFI LAN Ethernet



Hardware Specifications



CPU

Amlogic S905D  Quad-Croe 64-bit Cortex-A53



GPU

penta mali -450



RAM

1gb



ROM

8gb



WIFI

Built in 2.4G WIFI



IR

Infra Remote control



LAN Ethernet

10/100m.



LED Indicator

Power ON :blue; Standby :Red

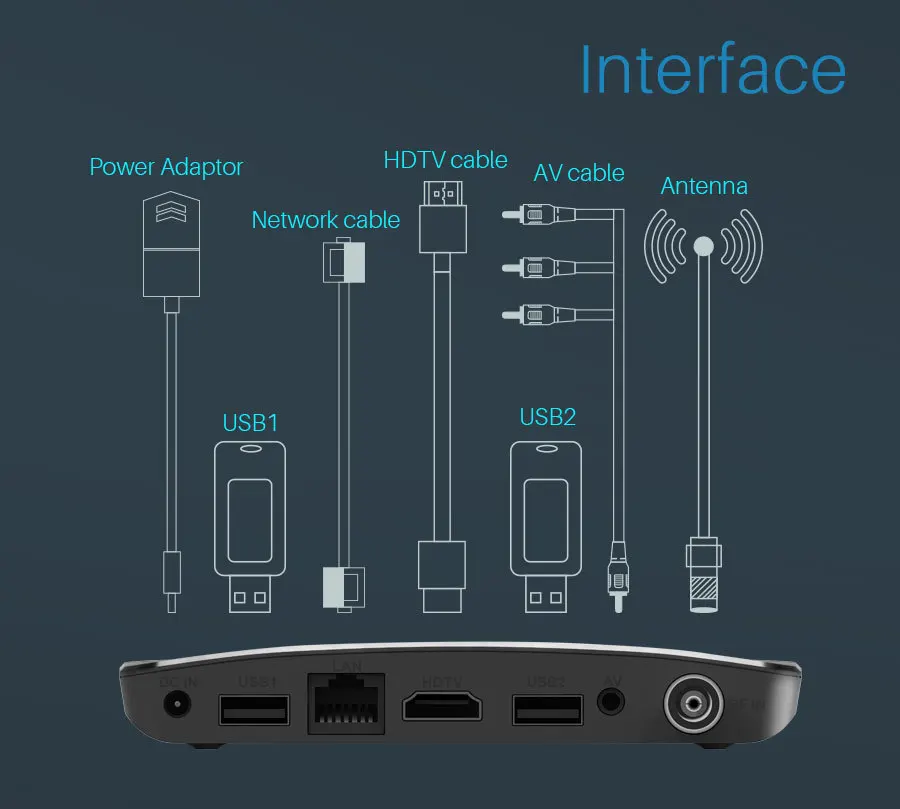

I/O

HDTV 2.0

4K/2K HDTV2.0



2*USB HOST

2* High speed USB 2.0,support U DISK and USB HDD



1 * av

CVBSL/R output



1 * rj45

10/100M BaseT



1*DC IN

DC Adapter 5V/2A



DVB T2 / T.

dvb-t2 system standard: etsien 302 755



Support MPLP



Demodulation: QPSK,16QAM,64QAM or 256QAM



Forward error correction rate 1/2,2/3,3/4,3/5,5/6



guard interval: 1 / 4.19 / 256,1 / 8,19 / 128.1 / 16,1 / 32.1 / 128



Bandwith: 6/7/8MHz



Input Frange range:54--860MHz Input Impedance:75 Ω



Input Signal level: -84 dBm to  0 dBm (average power)



the ant. connector: iec type female



Main Features



OS

Android 7.1.2



Video decorder

h.265 4k @ 30fps 10btis, vp9 profiles 2, h.264 4k @ 30fps, avs + 1080p @ 60fps



Video encorder

H.264 1080P @60fps



HDR

HDR10  HLG



Decoder Format

hd mpeg1 / 2 / 4, h.265 / hevc, hd avc / vc 1, rm / rmvb, xvid, realvideo8 / 9 / 10



Media Format

Avi / RM / RMVB / TS / VOB / MKV / MOV / ISO / WMV / ASF / FLV / dat / MPG / MPEG



Music format

Wma / AAC / WAV / Ogg / DDP / truehd / HD / FLAC / EPA



Photo format

HD JPEG / BMP / GIF / PNG / tiff



Network Function

MIRacast,,AIRplay,Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.



Language

Chinese,English, Germany, Japanese, Korea  etc.  24Languages

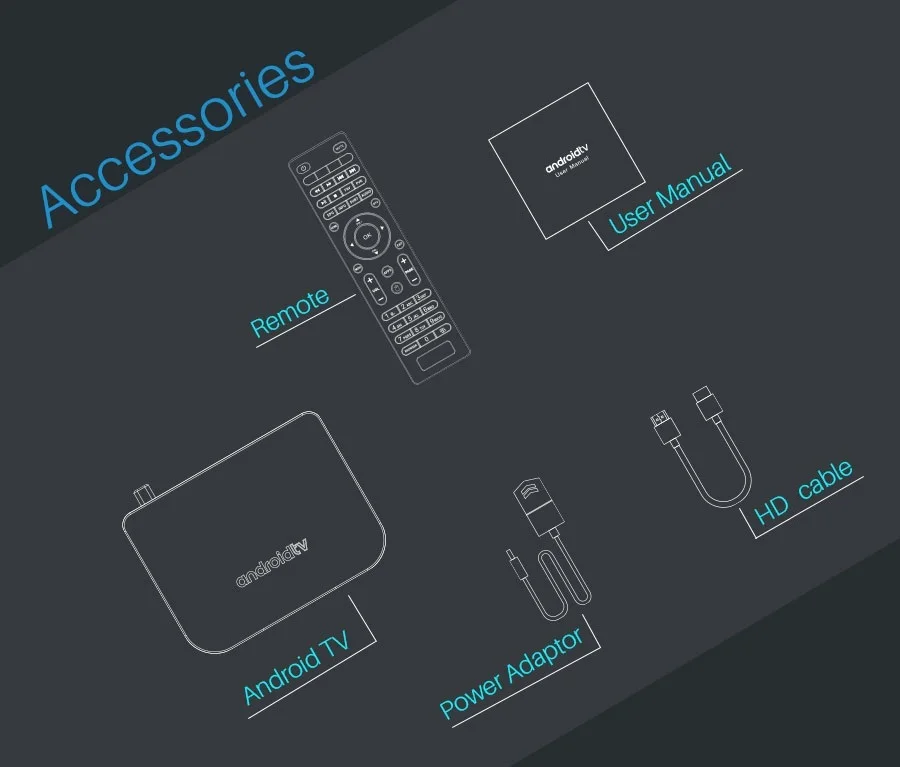

-1 x m8s over dvb box

-1 x remote control

-1 x Power Supply(5V/2A)

-1 x HD Cable
-1 x User Manual

A2

M8S PLUS DVB (1)M8S PLUS DVB (2)S2T21listingM8S PLUS DVB (3)



With the same picture quality

H.265 occupies less video and consumes less

dvb1





EVERYTHING POPS WITH HDR

Now it is time to have HDR on your TV with more realistic image,better contrast ,brighter and more colorful than before

dvb2

M8S PLUS DVB (6)





Equipped with a new generation of Android 7.1 ,backstage runtime does not occupy memory and runs faster .

System update and upgrade ,application ,data is not lOSt.

M8S PLUS DVB (7)





OTA service always keeps you up to date

dvb4

M8S PLUS DVB (9)M8S PLUS DVB (10)M8S PLUS DVB (11)

M8S PLUS DVB (12)M8S PLUS DVB (13)M8S PLUS DVB (14)



M8S PLUS DVB (15)
