A95X MAX Android 8.1 TV BOX 4GB 64GB Amlogic S905X2 2.4G&5G WIFI BT4.2 USB3.0 4K Set Top Box Support Video Record 2G 32G TV BOX

$66.65 30 % $95.22
0 sold
Qty
Product description
Product description

1. CPU:AMLs905x2 quad core

2. DDR4 2GB/4GB RAM ,32GB/64GB Optinal

3. Support 2.4G&5G dual Wifi,Bluetooth 4.x

4. Operation System:Android 8.1

5. Support Video Recording

Package Not include SSD/HDD



A95X MAX (19)A95X MAX (16)A95X MAX (17)A95X MAX (18)A95X MAX (20)A95X MAX (21)A95X MAX (22)A95X MAX (23)







A95X MAX (24)A95X MAX (25)













Item Description.jpg

Type Details Descriptions

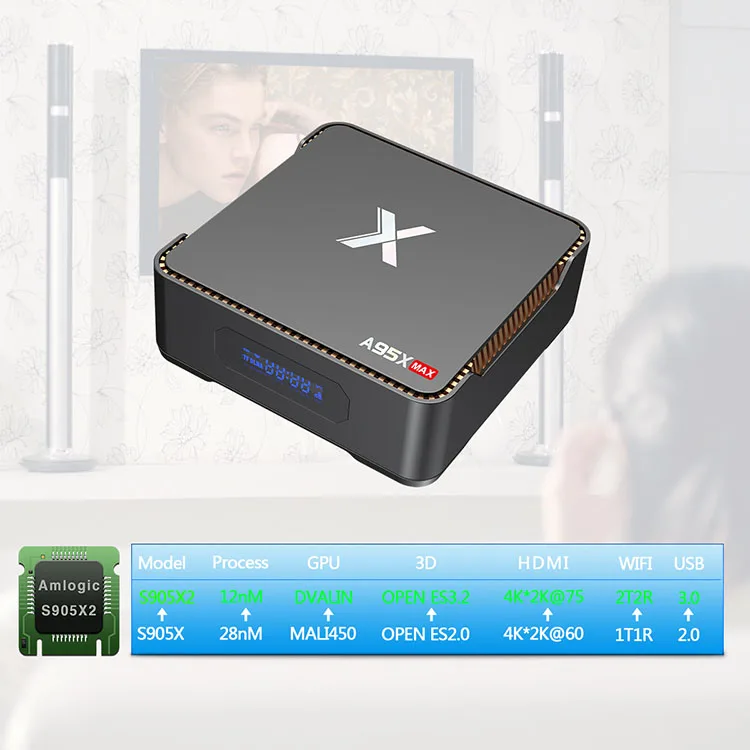

CPU Type Amlogic S905X2 Quad-core Cortex-A53
GPU Type ARM Dvalin MP2 GPU
support OpenGL ES3.2/OpenCL2.0
RAM Capacity 2GB/4GB( Optional
ROM EMMC 32GB/64GB(Option)


Network Connections:
Type Details Descriptions
WIFI WIFI module 2T2R IEEE 802.11 a/b/g/n/ac(2.4G&5G)
Support 20MHz/40MHz/80MHz
300Mbps in 802.11n,876Mbps in 802.11 ac
Bluetooth V4.2 Support 4.2+HS,BLE,ANT and compatible with v1.2,2.X
Ethernet Network RJ45 IEEE 802.3 10/100M/1000M
Interface Configuration:
Type Details Descriptions
Memory card socket External memory SDHC/SDXC Support 4GB/8GB/16GB/32GB/64GB

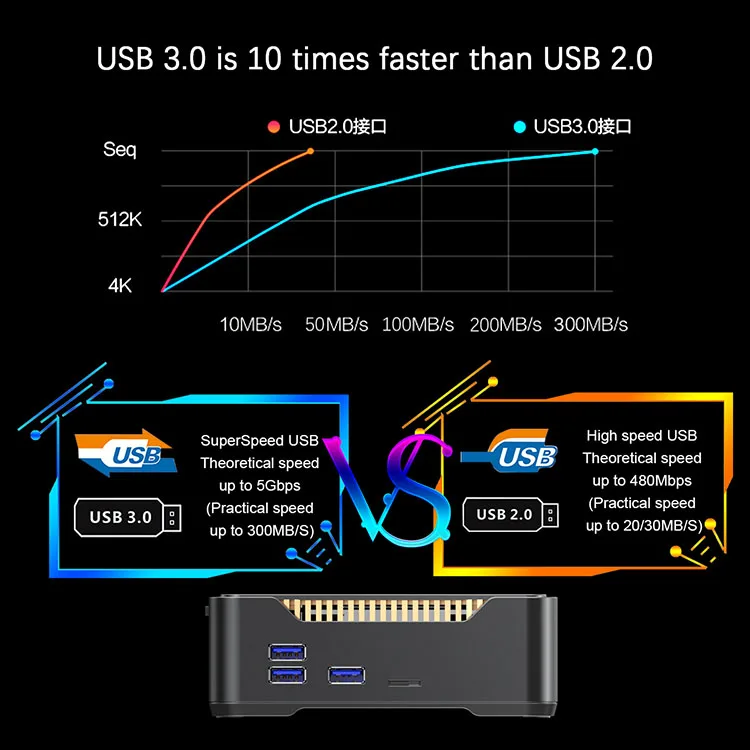

USB interface Data transfer supportive USB2.0x1 USB3.0x3
AV jack AV output ∮3.5mm jack CVBS 480i/576i standard definition output
DC connector Power ∮5.5mm jack
HDMI interface Audio/Video output HDMI 2.1 ,4Kx2K 75 max resolution output.
Support transmitter with 3D,, Dynamic HDR ,CEC and HDCP 2.2

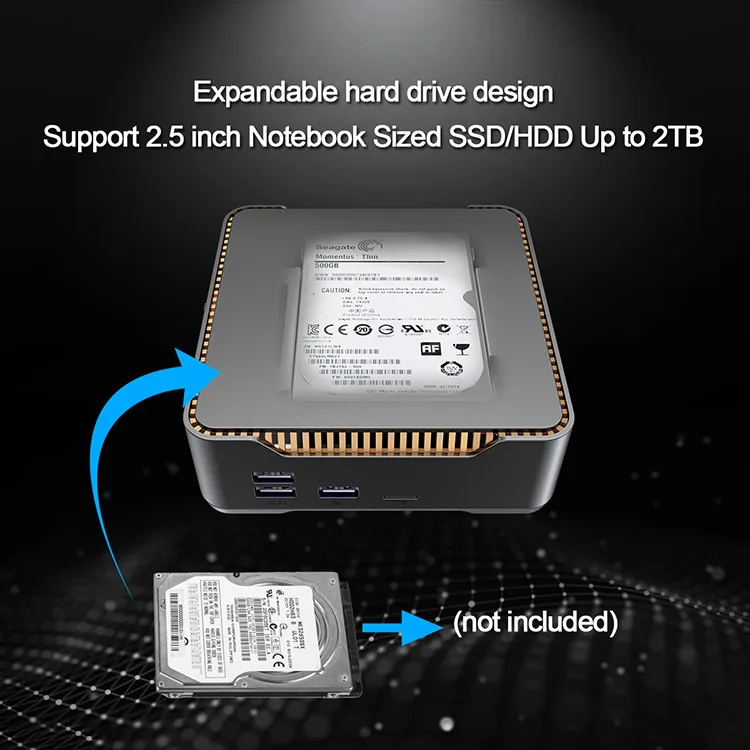

SATA jack Data transfer supportive support2.5〃HDD 500G/1T/2T(Power consumption<4W)
S/PDIF jack Audio output S/PDIF OUT


Software Configuration:
系统版本 Android 8.1
VIDEO Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
Yuml Support multi-video decoder up to 4Kx2K 60fps+1x1080P@60fps
Yuml Supports multiple ldquosecuredrdquo video decoding sessions and simultaneous decoding and encoding
Yuml Video/Picture Decoding
- VP9 Profile-2 up to 4Kx2K 60fps
- H.265 HEVC MP-10 L5.1 up to 4Kx2K 60fps
- AVS2-P2 Profile up to 4Kx2K 60fps
- H.264 AVC HP L5.1 up to 4Kx2K 30fps
- H.264 MVC up to 1080P 60fps
- MPEG-4 ASP L5 up to 1080P 60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P 60fps
- AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P 60fps
- MPEG-2 MP/HL up to 1080P 60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P 60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P 60fps
- Multiple language and multiple format sub-title video support
- MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
- Supports JPEG thumbnail, scaling, rotation and transition effects
- Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Video/Picture Encoding
Independent JPEG and H.265/H.264 encorder with configurable performance/bit-rate
JPEG image encording
H.265/H.264 video encording up to 1080P@60fps with latency
AUDIO Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Image HD JPEG,BMP,GIF,PNG,TIF
